Buffered Effects Loop and Reverb

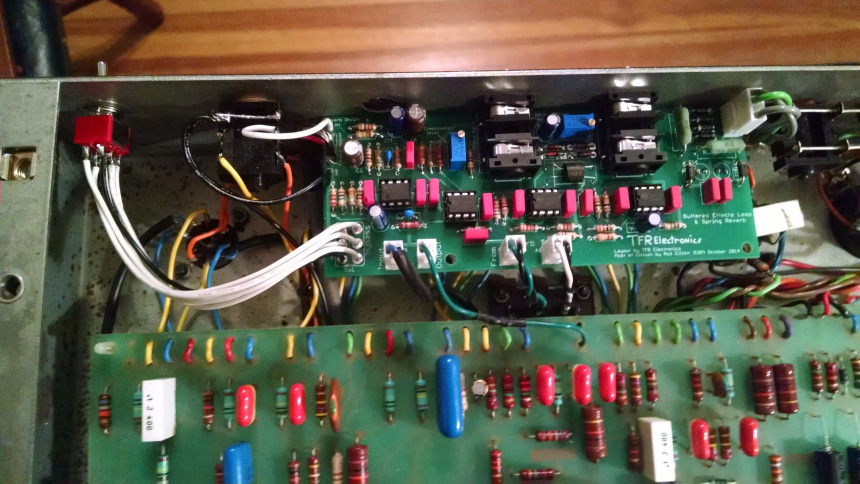

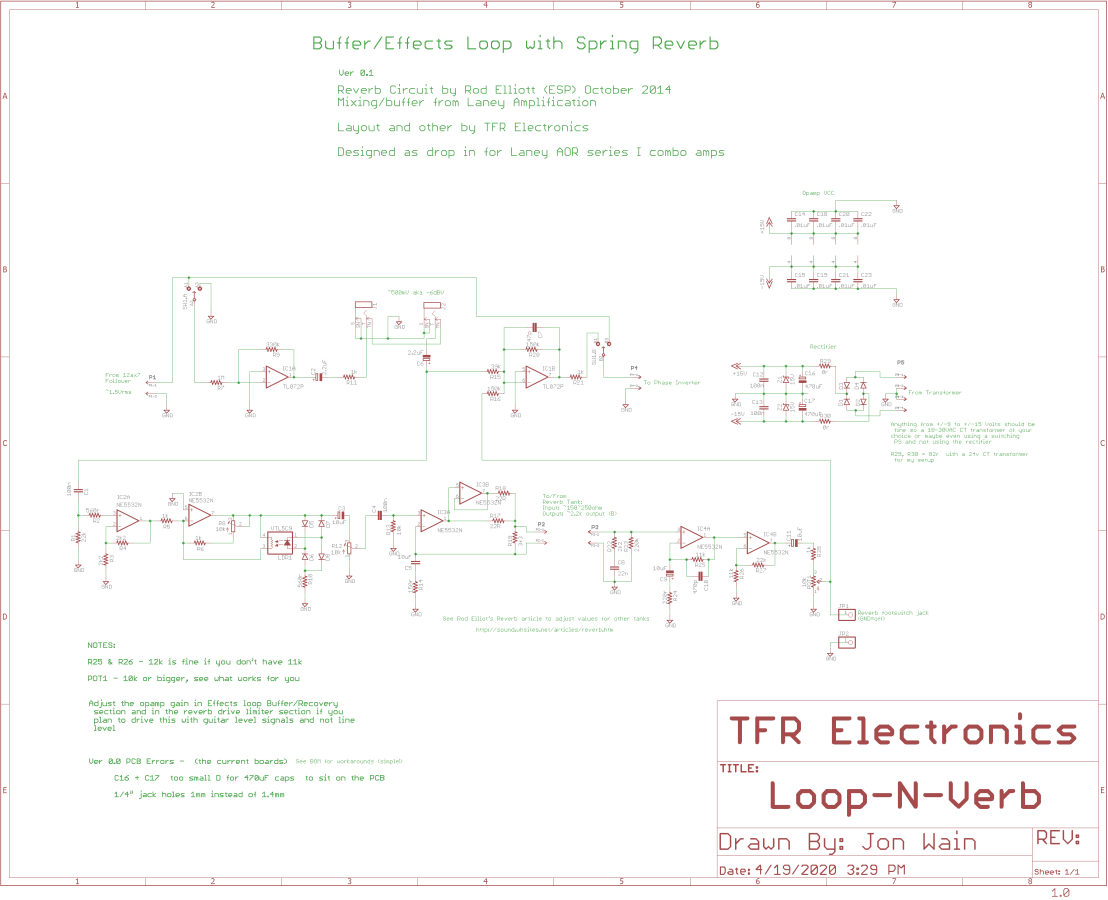

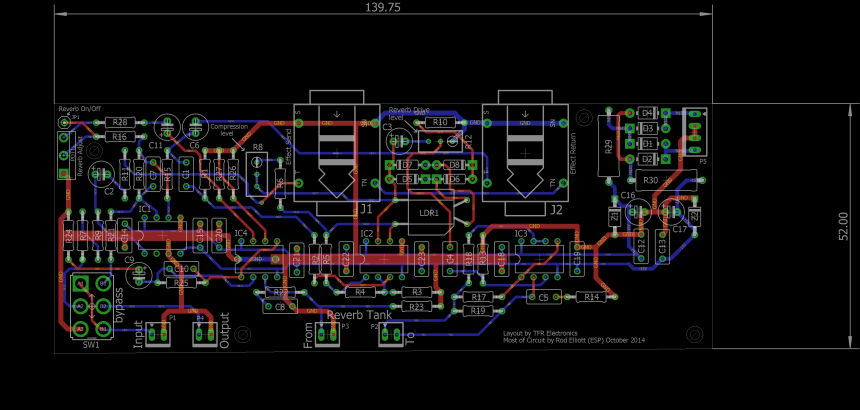

  Laney AOR series combo amps come with a buffered effects loop and reverb section that is on a separate PCB from the rest of the amp. I was unhappy with the reverb in my AOR50 so I designed this as an improved replacement for the effects loop and reverb PCB. The effects loop is standard opamp stuff and the reverb section design comes from projects by Rod Elliot of Elliott Sound Products (ESP). While designed to fit in a Laney AOR chassis, this board could easily be adapted for use in another amp project or for making a standalone reverb unit.
